Semi-automatic adjustable welding boom NOBIROON

As the boom supports the cable and the wire-feeder, you will have more space for welding.
This will enable you to work more safely and efficiently. As you will be freed from annoying cables on the floor and moving heavy wire-feeder, your preperation time will be greatly reduced.

S Type

S-6038 / 5033 / 4027 / 3022 / 2216
DS-6038 / 5033 / 4027 / 3022 / 2216

+ View

N Type

N-611 / 509 / 407 / 305 / 235

+ View

DN Type

DN-611 / 509 / 407 / 305 / 235

+ View

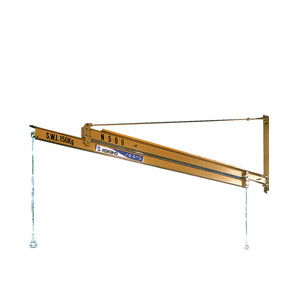

PN Type

PN-611 / 509

+ View

L Type

L-1693 / 1480 / 1375
DL-1693 / 1480 / 1375

+ View

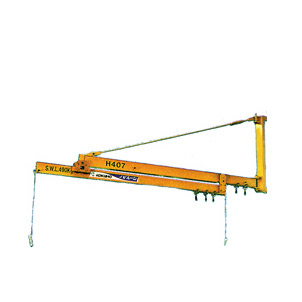

H Type

H-611 / 509 / 407
DH-611 / 509 / 407

+ View

DGH Type

GH-611 / 509 / 407
DGH-611 / 509 / 407

+ View

DGL Type

GL-1693 / 1480 / 1375
DGL-1693 / 1480 / 1375

+ View

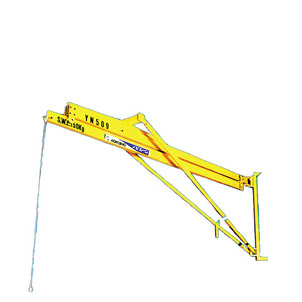

YN Type

YN-611 / 509 / 407 / 305 / 235
DYN-611 / 509 / 407 / 305 / 235

+ View

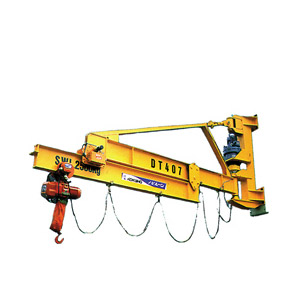

DT Type

DT-611 / 509 / 407 / 406 / 305

+ View

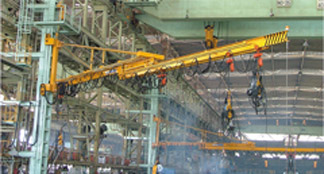

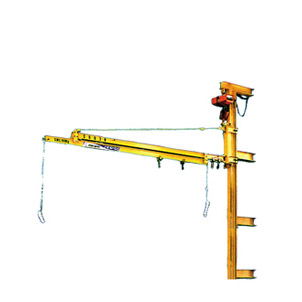

EV Type

EVS-6038 / 5033 / 4027 / 3022 / 2216
EVN-611 / 509 / 407 / 305 / 235

+ View

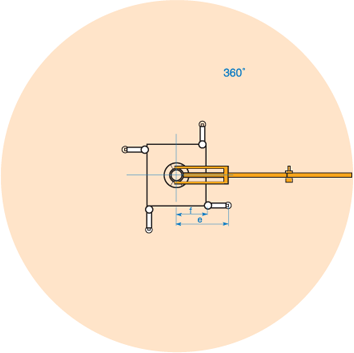

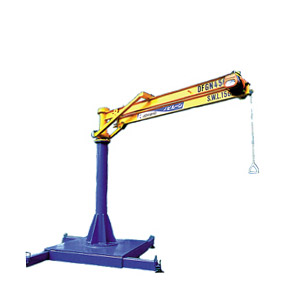

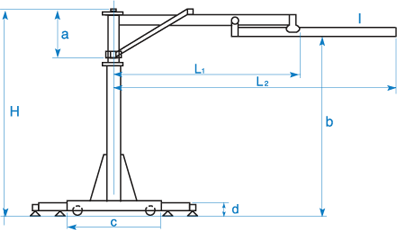

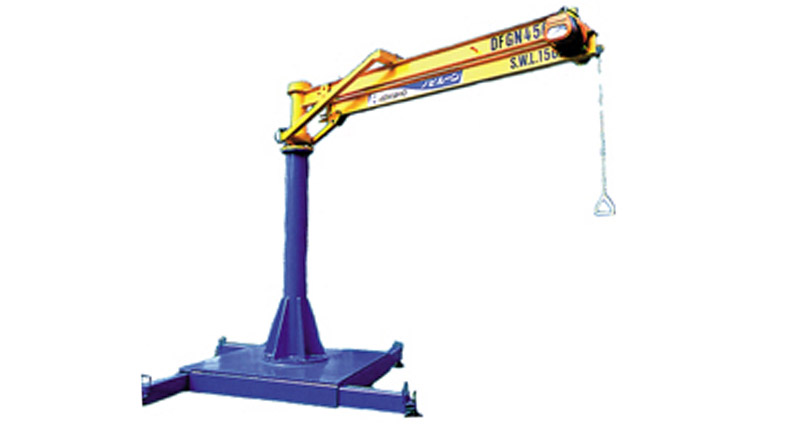

DFGN Type

DFGN-580 / 450 / 350

+ View

DWN Type

DWN-611 / 509 / 407

+ View

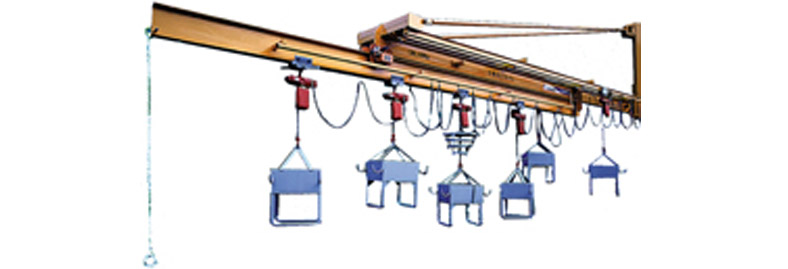

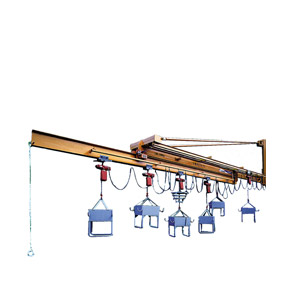

DWGL Super Type

DWGL-1480 / 1693

+ View

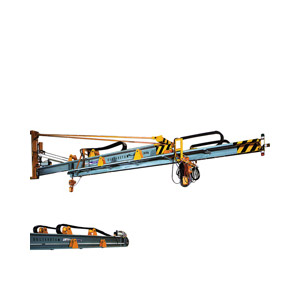

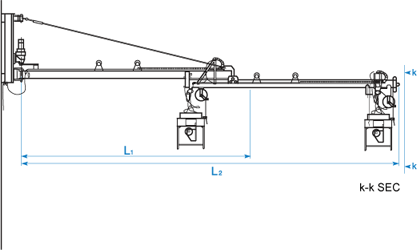

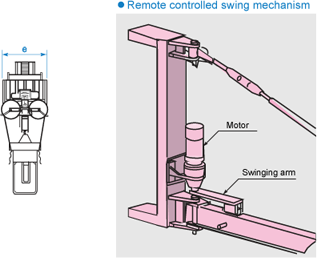

DGL-TUM Type

DGL-TUM 1480 / 1693

+ View

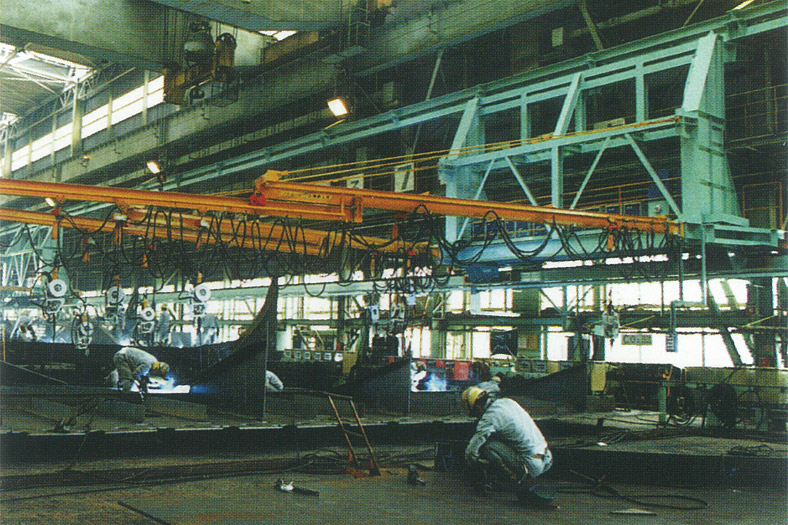

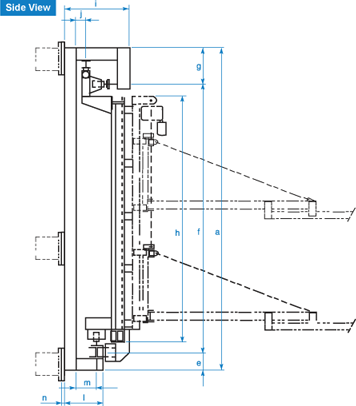

HEVN Type

HEVN-611 / 509 / 407 / 305 / 235

+ View

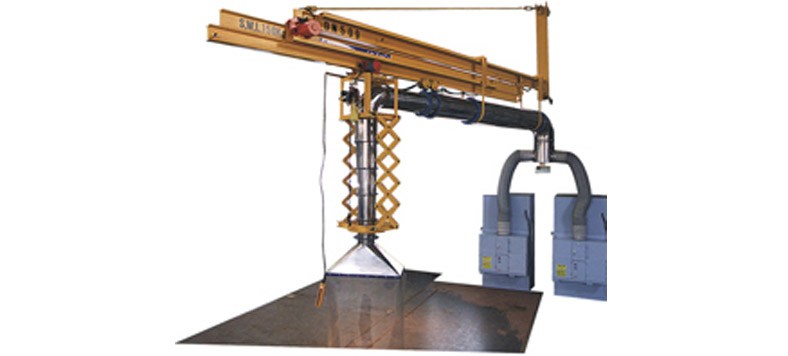

DUST-ROON

+ View

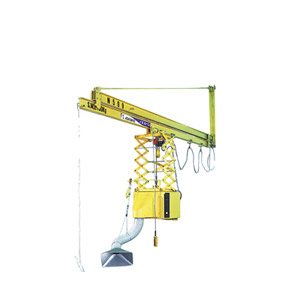

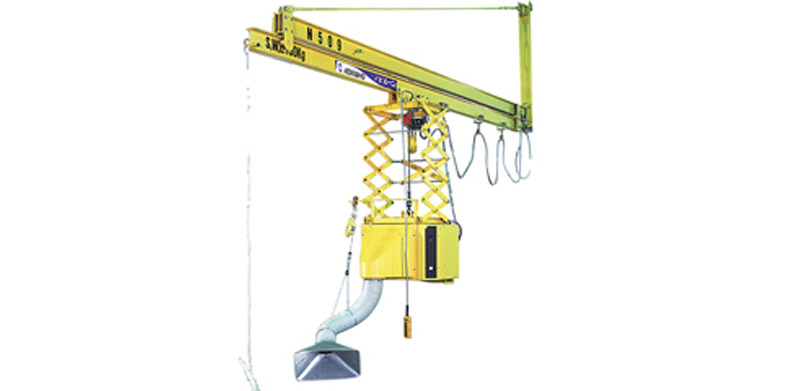

PRIMO-ROON

+ View

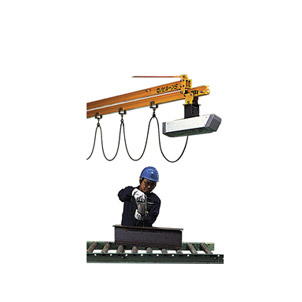

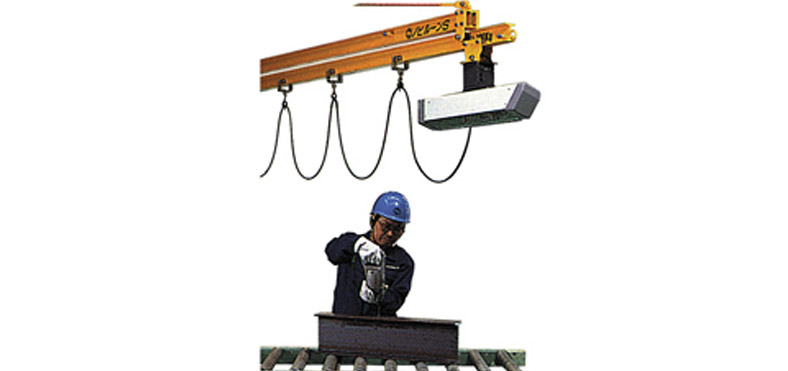

HOT-ROON

+ View

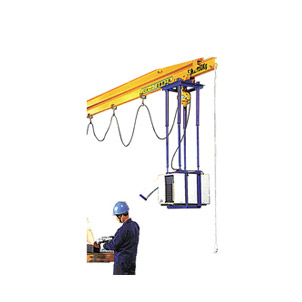

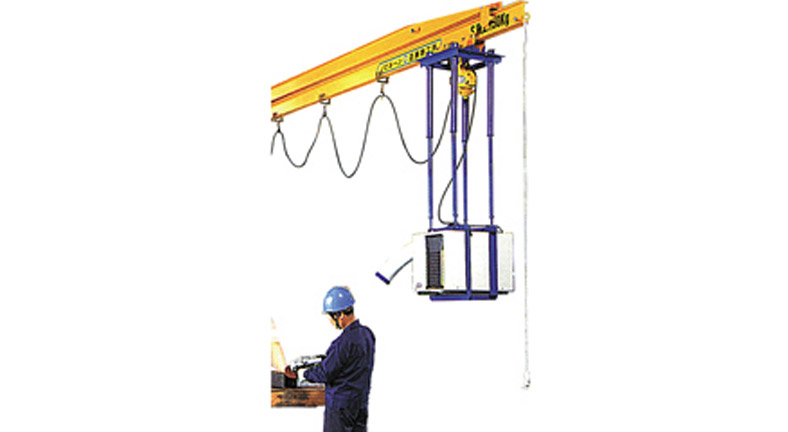

COOL-ROON

+ View

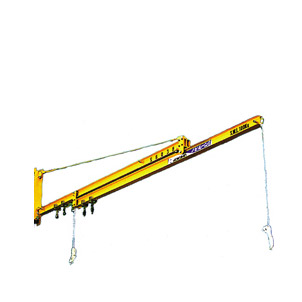

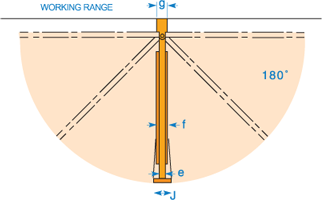

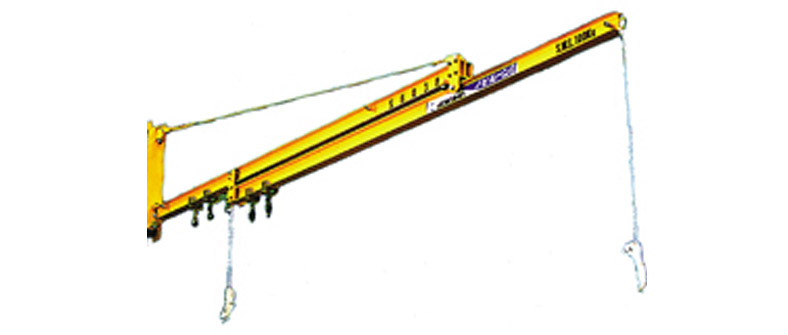

S Type

S-6038 / 5033 / 4027 / 3022 / 2216
DS-6038 / 5033 / 4027 / 3022 / 2216

  • A compact type. Ideal for small welding work in a confined space.
  • S type with motorized boom extender (DS Type)
  • S.W.L. 100kg ~ 200kg

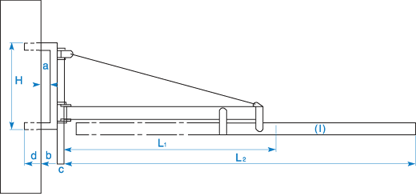

Specifications

Model Number 6038 5033 4027 3022 2216
Minimum length of boom L1 (length of main boom) (mm) 3730 3230 2630 2130 1430
Maximum extended length of boom L2 (mm) 6130 5130 4110 3110 2330
Length of mounting frame (mm) 930 850 750 670 670
Safe working load at the edge of extension (kg) 100 120 130 160 200
Quantity of cable trolley 4 4 3 2 2
Weight (kg) Boom 106 93 77.4 65 52
Stay 7.3 6.5 5.6 4.8 4
Mounting frame 19.3 18.2 16.9 15.8 15.8
a 100
b 165
c 50
d (Extension fixing length) -
e (Boom width) 75
f (Swing stopper width) -
g (Mounting frame width) 125
I (Boom sectional dimensions) I - 5 x 75 x 100 (DS bottom boom I - 5.5 x 75 x 125)
*Specifications will change according to modifications without notice.

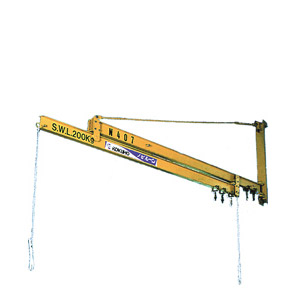

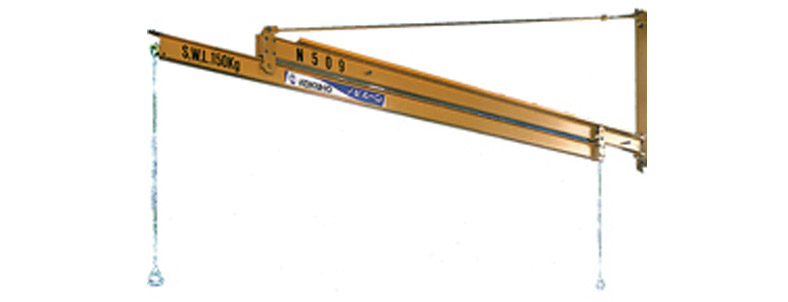

N Type

N-611 / 509 / 407 / 305 / 235

  • A standard type. Most widely used for general purposes.
  • S.W.L. 100kg ~ 300kg

Specifications

Model Number 611 509 407 305 235
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340 3340 2240
Maximum extended length of boom L2 (mm) 10920 8870 6920 4890 3420
Length of mounting frame (mm) 2070 1800 1530 1250 980
Safe working load at the edge of extension (kg) 100 150 200 300 300
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 234.5 200.2 166.2 131.9 97.7
Stay 19.8 17.5 15.2 12.9 10.6
Mounting frame 59.7 54.7 49.6 44.4 39.4
a 100
b 175
c 100
d (Extension fixing length) 100
e (Boom width) 75
f (Swing stopper width) -
g (Mounting frame width) 150
I (Boom sectional dimensions) I - 5.5×75×100
*Specifications will change according to modifications without notice.

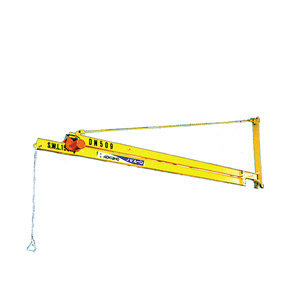

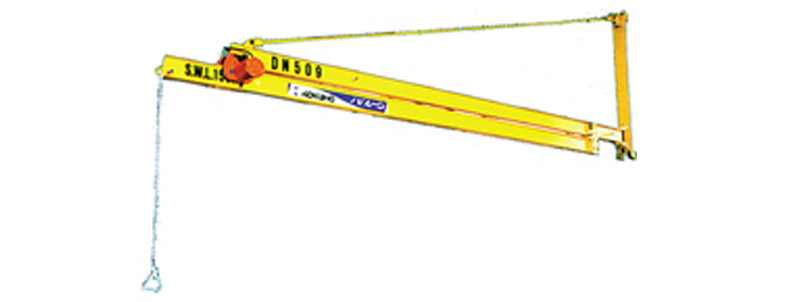

DN Type

DN-611 / 509 / 407 / 305 / 235

  • A standard type (N type) with motorized boom extender.
  • S.W.L. 100kg ~ 300kg

Specifications

Model Number 611 509 407 305 235
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340 3340 2240
Maximum extended length of boom L2 (mm) 10920 8870 6920 4890 3420
Length of mounting frame (mm) 2070 1800 1530 1250 980
Safe working load at the edge of extension (kg) 100 150 200 300 300
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 234.5 200.2 166.2 131.9 97.7
Stay 19.8 17.5 15.2 12.9 10.6
Mounting frame 59.7 54.7 49.6 44.4 39.4
a 100
b 175
c 100
d (Extension fixing length) 100
e (Boom width) 75
f (Swing stopper width) -
g (Mounting frame width) 150
I (Boom sectional dimensions) I - 6×100×180
*Specifications will change according to modifications without notice.

PN Type

PN-611 / 509

  • Makes heavy material handling easy.
  • S.W.L. 100kg ~ 300kg

Specifications

Model Number 611 509 407 305 235
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340 3340 2240
Maximum extended length of boom L2 (mm) 10920 8870 6920 4890 3420
Length of mounting frame (mm) 2070 1800 1530 1250 980
Safe working load at the edge of extension (kg) 100 150 200 300 300
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 288.8 244.1 166.2 131.9 97.7
Stay 19.8 17.5 15.2 12.9 10.6
Mounting frame 59.7 54.7 49.6 44.4 39.4
a 100
b 175
c 100
d (Extension fixing length) 100
e (Boom width) 75
f (Swing stopper width) 150
g (Mounting frame width) 150
I (Boom sectional dimensions) I - 5.5×75×100
*Specifications will change according to modifications without notice.

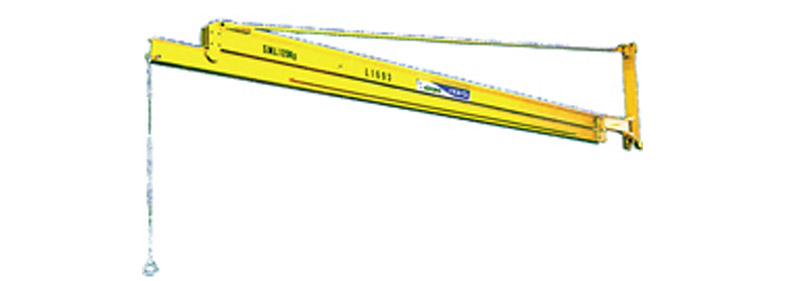

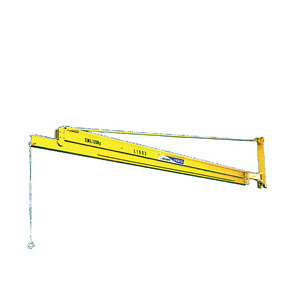

L Type

L-1693 / 1480 / 1375
DL-1693 / 1480 / 1375

  • A long type. Suitable for large welding project that requires larger working space and travelling range. (L Type)
  • A long type (L Type) with motorized boom extender. (DL Type)
  • S.W.L. 120kg ~ 180kg

Specifications

Model Number 1693 1480 1375
Minimum length of boom L1 (length of main boom) (mm) 9340 8140 7540
Maximum extended length of boom L2 (mm) 16140 14140 13090
Length of mounting frame (mm) 2520 2320 2220
Safe working load at the edge of extension (kg) 120 150 180
Quantity of cable trolley 9 8 7
Weight (kg) Boom 715.1 570.8 493.9
Stay 49.5 43.7 41
Mounting frame 131.1 125 122
a 100
b 190
c 100
d (Extension fixing length) 200
e (Boom width) 100
f (Swing stopper width) 250
g (Mounting frame width) 200
I (Boom sectional dimensions) I - 7×100×200
*Specifications will change according to modifications without notice.

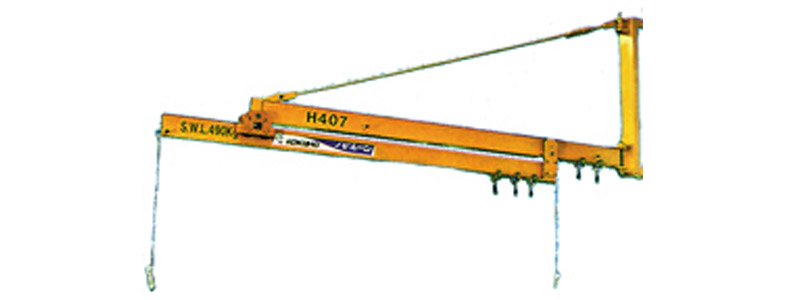

H Type

H-611 / 509 / 407
DH-611 / 509 / 407

  • A powered and durable type. Can support large and heavy welder. (H Type)
  • H Type with motorized boom extender. (DH Type)
  • S.W.L. 240kg ~ 490kg

Specifications

Model Number 611 509 407
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340
Maximum extended length of boom L2 (mm) 10920 8920 6920
Length of mounting frame (mm) 2140 1940 1740
Safe working load at the edge of extension (kg) 240 330 490
Quantity of cable trolley 6 5 4
Weight (kg) Boom 440.9 378.8 315.7
Stay 37.1 32.4 27.8
Mounting frame 119.7 113.7 107.6
a 100
b 190
c 100
d (Extension fixing length) 200
e (Boom width) 100
f (Swing stopper width) 200
g (Mounting frame width) 200
I (Boom sectional dimensions) I - 7×100×200
*Specifications will change according to modifications without notice.

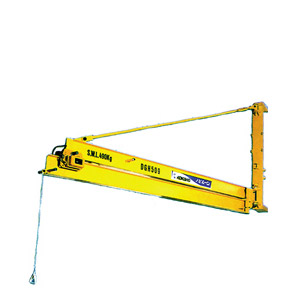

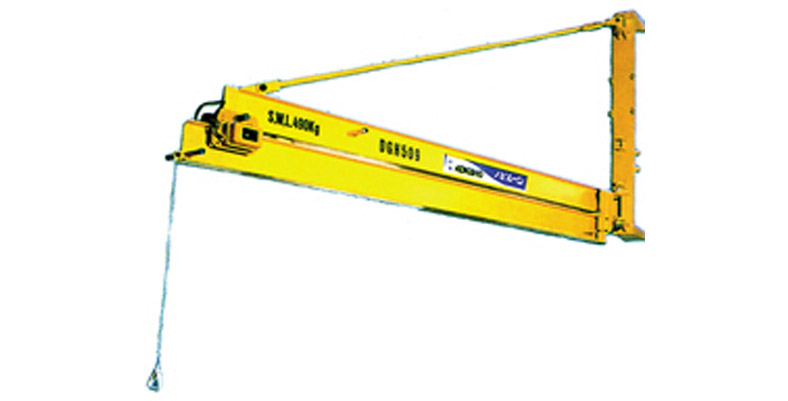

DGH Type

GH-611 / 509 / 407
DGH-611 / 509 / 407

  • H Type with increased durability. Quickly moves heavy objects. (GH Type)
  • GH Type with motorized boom extender. (DGH Type)
  • S.W.L. 490kg

Specifications

Model Number 611 509 407
Minimum length of boom L1 (length of main boom) (mm) 6350 5350 4350
Maximum extended length of boom L2 (mm) 10910 8910 6910
Length of mounting frame (mm) 2320 2020 1720
Safe working load at the edge of extension (kg) 490 700 900
Quantity of cable trolley 6 5 4
Weight (kg) Boom 716.9 648.9 562.9
Stay 64.9 57.4 49.7
Mounting frame 145.7 138 127.6
a 100
b 190
c 100
d (Extension fixing length) 200
e (Boom width) 125
f (Swing stopper width) -
g (Mounting frame width) 250
I (Boom sectional dimensions) I - 7.5×125×250
*Specifications will change according to modifications without notice.

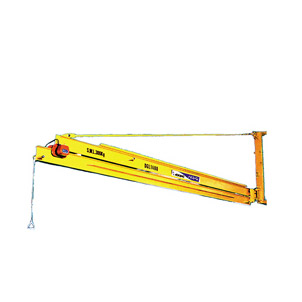

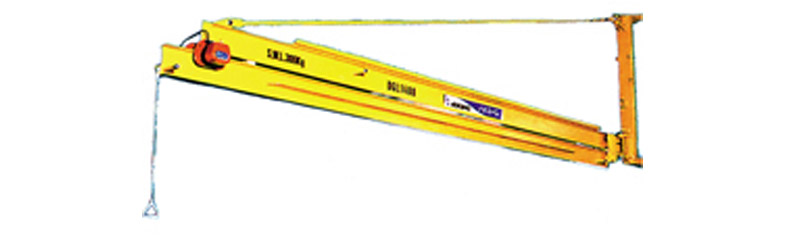

DGL Type

GL-1693 / 1480 / 1375
DGL-1693 / 1480 / 1375

  • Electric chain block reduces your workload. (GL Type)
  • GL Type with motorized boom extender. (DGL Type)
  • S.W.L. 200kg ~ 350kg

Specifications

Model Number 1693 1480 1375
Minimum length of boom L1 (length of main boom) (mm) 9350 8350 7550
Maximum extended length of boom L2 (mm) 16110 14110 13060
Length of mounting frame (mm) 2520 2320 2120
Safe working load at the edge of extension (kg) 200 300 350
Quantity of cable trolley 9 8 7
Weight (kg) Boom 949 872.3 801.6
Stay 79.8 71.6 65.8
Mounting frame 152.6 145.7 138.8
a 100
b 190
c 100
d (Extension fixing length) 200
e (Boom width) 125
f (Swing stopper width) 250
g (Mounting frame width) 250
I (Boom sectional dimensions) I - 7.5×125×250
*Specifications will change according to modifications without notice.

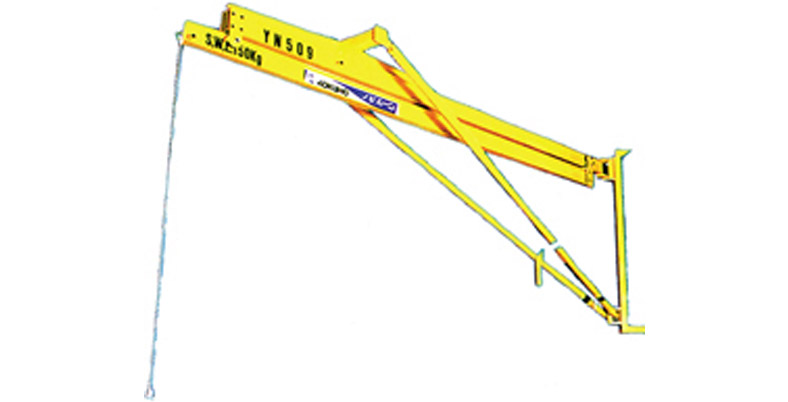

YN Type

YN-611 / 509 / 407 / 305 / 235
DYN-611 / 509 / 407 / 305 / 235

  • Can be lifted to the top of a wall. An object can then have a long vertical movement range. (YN Type)
  • YN type with motorized boom extender. (DYN Type)
  • S.W.L. 100kg ~ 300kg

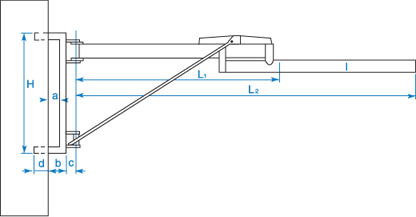

Specifications

Model Number 611 509 407 305 235
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340 3340 2240
Maximum extended length of boom L2 (mm) 10920 8870 6920 4890 3420
Length of mounting frame (mm) 2150 1950 1550 1250 1250
Safe working load at the edge of extension (kg) 100 150 200 300 300
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 254 219 185 151 117
Stay 79.3 67.7 58.5 49.3 44.6
Mounting frame 63.6 59.9 52.5 46.9 46.9
a 100
b 175
c 100
d (Extension fixing length) 100
e (Boom width) 75
f (Stay frame) 830
g (Mounting frame width) 150
I (Boom sectional dimensions) I - 5.5×75×150
*Specifications will change according to modifications without notice.

DT Type

DT-611 / 509 / 407 / 406 / 305

  • Fully automatic and powered type. Can support heavy objects (4,000kg maximum). Remote control for swinging, extension, retraction and vertical movement of the boom.
  • S.W.L. 1500kg ~ 4000kg

Specifications

Model Number 611 509 407 406 305
Minimum length of boom L1 (length of main boom) (mm) 6600 5600 4600 4100 3600
Maximum extended length of boom L2 (mm) 11040 9040 7040 6040 5040
Length of mounting frame (mm) 3150 2790 2430 2430 2050
Safe working load at the edge of extension (kg) 1500 2000 2500 3500 4000
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 1492.3 1315.2 1138.4 1050.5 962.6
Mounting frame 1412 1374 1335 1335 1250
a 100
b 400
c 210
d (Extension fixing length) 150
e (Boom width) 150
f (Swing stopper width) -
g (Mounting frame width) 600
I (Boom sectional dimensions) I - 10×150×400
*Specifications will change according to modifications without notice.

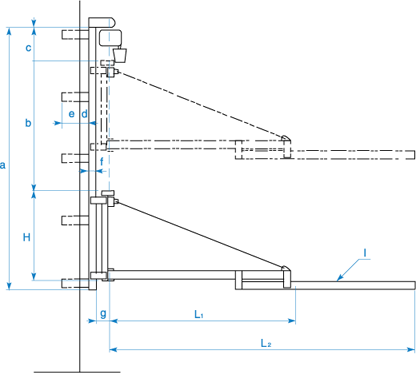

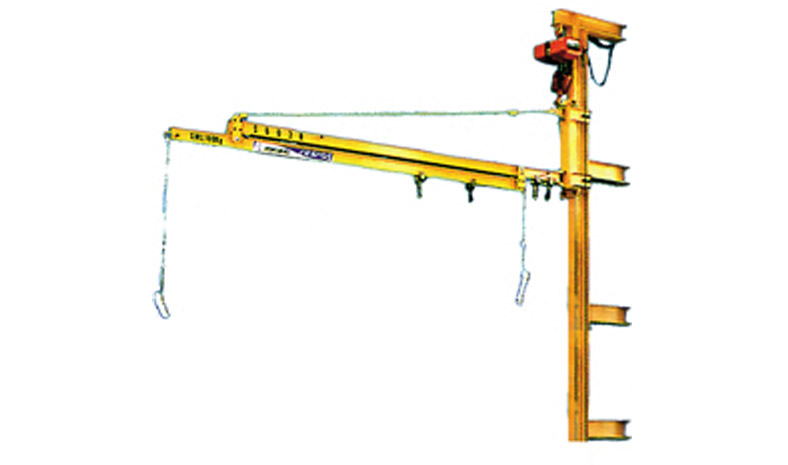

EV Type

EVS-6038 / 5033 / 4027 / 3022 / 2216
EVN-611 / 509 / 407 / 305 / 235

  • A motorized type with vertical movement.
  • S.W.L. 100kg ~ 200kg (EVS Type)
    100kg ~ 300kg (EVN Type)

Specifications

Type EVS
Model Number 6038 5033 4027 3022 2216
Minimum length of boom L1 (length of main boom) (mm) 3730 3230 2630 2130 1430
Maximum extended length of boom L2 (mm) 6130 5130 4110 3110 2330
Length of mounting frame (mm) 950 870 770 690 690
Safe working load at the edge of extension (kg) 100 120 130 160 200
Quantity of cable trolley 4 4 3 2 2
Weight (kg) Boom 106 93 77.4 65 52
Stay 7.3 6.5 5.6 4.8 4
Mounting frame 40.8 39.7 38.4 37.3 37.3
a optional
b optional
c 510
d 100
e (Extension fixing length) 220
f (Sliding rail sectional dimensions) H 125×125×6.5/9
g 200
I (Boom sectional dimensions) I - 5×75×100
Type EVN (Vertically mobile model)
Model Number 611 509 407 305 235
Minimum length of boom L1 (length of main boom) (mm) 6340 5340 4340 3340 2240
Maximum extended length of boom L2 (mm) 10920 8870 6920 4890 3420
Length of mounting frame (mm) 2070 1800 1530 1250 980
Safe working load at the edge of extension (kg) 100 150 200 300 300
Quantity of cable trolley 6 5 4 3 2
Weight (kg) Boom 234.5 200.2 166.2 131.9 97.7
Stay 19.8 17.5 15.2 12.9 10.6
Mounting frame 88 82.3 76.5 70.5 70.5
a optional
b optional
c 510
d 100
e (Extension fixing length) 200
f (Sliding rail sectional dimensions) H 150×150×7/10
g 260
I (Boom sectional dimensions) I - 5.5×75×150
*Specifications will change according to modifications without notice.

DFGN Type

DFGN-580 / 450 / 350

  • A mobile type with base. Can be placed in the center of a factory and can swing 360 degrees.
  • S.W.L. 100kg ~ 200kg

Specifications

Model Number 580 450 350
Minimum length of boom L1 (length of main boom) (mm) 3500 2900 2300
Maximum extended length of boom L2 (mm) 5800 4500 3500
Safe working load at the edge of extension (kg) 100 150 200
Pillar height H (mm) 3000
Weight (kg) Swinging part 246 224 205
Fixed part 1360
a (Swinging part height) 640
b (Extension boom height) 2540
c (Base length and width) 1500
d (Base height) 250
e (Extended outrigger length) 1260
f (Extended outrigger length) 830
I (Boom sectional dimensions) I - 5.5×75×150
*Specifications will change according to modifications without notice.

DWN Type

DWN-611 / 509 / 407

  • Standard type with added side rail and motorized swinging movement.
  • S.W.L. 100kg ~ 300kg

Specifications

Model Number 611 509 407
a 500
b 75
c (Sub rail sectional dimensions) C 75×45×15×2.3
d 181
e 230
f (Main boom length of sub rail sectional dimensions) 5700 4700 3700
g (Extension boom length of sub rail sectional dimensions) 5200 4200 3200
*Specifications will change according to modifications without notice.

DWGL Super Type

DWGL-1480 / 1693

  • Suitable for welding work in large spaces.
  • Allows efficient use of several semi-automatic adjustable welding machines.
  • The hanging cargo boxes make it easy to load a number of different goods such as cables, hoses and tools.
  • S.W.L. 500kg ~ 580kg

Specifications

Model Number 1480 1693
Minimum length of boom L1 (length of main boom) (mm) 8200 9360
Maximum extended length of boom L2 (mm) 14110 16120
Length of mounting frame (mm) 2500 2800
Safe working load at the edge of extension (kg) 580 500
Quantity of cable trolley I: 8 / C: 16 I: 9 / C: 18
Weight (kg) Boom 1490 1650
Stay 161 186
Mounting frame 399 425
a 150
b 350
c 207
d (Extension fixing length) 150
e (Stay rest) 1250
f (Boom width) 150
g (Hanger rail width) 1163
h (Mounting frame width) 300
*Specifications will change according to modifications without notice.

DGL-TUM Type

DGL-TUM 1480 / 1693

  • Remote control swinging movement brings speed and safety to your work.
  • S.W.L. 250kg
Double chain block

Specifications

Model Number 1480 1693
Minimum length of boom L1 (length of main boom) (mm) 8320 9320
Maximum extended length of boom L2 (mm) 14130 16130
Length of mounting frame (mm) 2500 2800
Safe working load at the edge of extension (kg) 350 250
Weight (kg) Boom 1588 1701
Stay 119 133
Mounting frame 474 486
a (Boom width) 150
b (Swing stopper width) 350
c (Mounting frame width) 300
d (Boom sectional dimensions) I - 8×150×300
e (Maximum width) 1150
*Specifications will change according to modifications without notice.

HEVN Type

HEVN-611 / 509 / 407 / 305 / 235

  • A cantilever type. Slides along the walls of a factory.

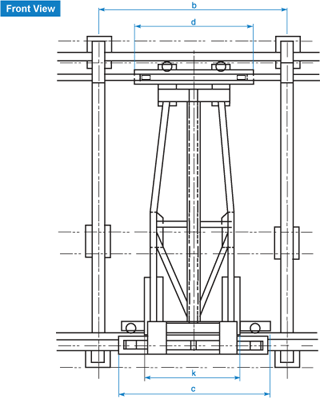

Specifications

Model Number 611 509 407 305 235
Model Number EVN-611 EVN-509 EVN-407 EVN-305 EVN-235
Vertical movement range optional
Horizontal movement range optional
a optional
b optional
c optional
d optional
e 306mm
f optional
g 646mm
h optional
i 1080mm
j 180mm
k optional
l 680mm
m 380mm
n 22mm
*Specifications will change according to modifications without notice.

DUST-ROON

  • A dust collector with large capacity. Extracts smoke and dust and keeps the working environment clean.

PRIMO-ROON

  • A compact and flexible, mobile dust collector. Eliminates smoke and dust from a small work area.

HOT-ROON

  • A swinging heater that can also be used as paint drier.

COOL-ROON

  • An air-cooler to hang on the boom of NOBIROON. Cools down your working space and increases efficiency.
Pagetop
